Random Forest Cloud Phase Classification Using Vertically Pointing Radar and Lidar

# IMPORTS
import numpy as np
import pandas as pd
import xarray as xr
import matplotlib.pyplot as plt
import joblib

from pathlib import Path

from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import GroupShuffleSplit
from sklearn.metrics import (
    classification_report,
    confusion_matrix,
    ConfusionMatrixDisplay,
    accuracy_score,
    balanced_accuracy_score,
    f1_score,
    precision_score,
    recall_score,
)

# ============================================================
# User settings
# ============================================================

RADAR_FILE = Path("/data/home/user/high_res_data/data_refl_radar.nc")
CEIL_FILE = Path("/data/home/user/high_res_data/data_ceilometer.nc")
LABEL_FILE = Path("/data/home/user/high_res_data/cloud_phase_label.nc")

VEL_FILE = Path("/data/home/user/high_res_data/mean_doppler_vel_radar.nc")
MWR_FILE = Path("/data/home/user/high_res_data/lwp_mwr.nc")
SPEC_FILE = Path("/data/home/user/high_res_data/spectral_width_radar.nc")

OUT_DIR = Path("random_forest_phase_output_highres")
OUT_DIR.mkdir(parents=True, exist_ok=True)

FIG_DIR = OUT_DIR / "figures"
FIG_DIR.mkdir(parents=True, exist_ok=True)

RANDOM_STATE = 42

# Open/Read the Datasets
radar_ds = xr.open_dataset(RADAR_FILE)
ceil_ds = xr.open_dataset(CEIL_FILE)
label_ds = xr.open_dataset(LABEL_FILE)

vel_ds = xr.open_dataset(VEL_FILE)
mwr_lwp_ds = xr.open_dataset(MWR_FILE)
spec_width_ds = xr.open_dataset(SPEC_FILE)

print("Radar dataset:")
print(radar_ds)

print("\nCeilometer dataset:")
print(ceil_ds)

print("\nLabel dataset:")
print(label_ds)

print("\nspec width dataset:")
print(spec_width_ds)

print(list(radar_ds.data_vars))

# clear_sky:0
# liquid, drizzle, liquid_drizzle, rain:1
# ice:2
# mixed_phase:3
# unknown:4

print(list(label_ds.cloud_phase_mplgr.values))

# ============================================================
# Cell 3: Define variable names
# ============================================================

radar_var = "reflectivity_best_estimate"
ceil_var = "backscatter"
label_var = "cloud_phase_mplgr"

# New variables
vel_var = "mean_doppler_velocity"
spec_width_var = "spectral_width"
mwr_lwp_var = "liq"

print("Radar variable exists:", radar_var in radar_ds)
print("Ceilometer variable exists:", ceil_var in ceil_ds)
print("Label variable exists:", label_var in label_ds)

print("Velocity variable exists:", vel_var in vel_ds)
print("Spectrum width variable exists:", spec_width_var in spec_width_ds)
print("MWR LWP variable exists:", mwr_lwp_var in mwr_lwp_ds)

# ============================================================
# Cell 4: Put ceilometer and new variables onto radar/label grid
# ============================================================

ref_time = radar_ds["time"]
ref_height = radar_ds["height"]

# Ceilometer onto radar grid
ceil_on_radar_grid = ceil_ds.interp(
    time=ref_time,
    height=ref_height,
    method="nearest"
)

# Velocity onto radar grid
vel_on_radar_grid = vel_ds.interp(
    time=ref_time,
    height=ref_height,
    method="nearest"
)

# Spectrum width onto radar grid
spec_width_on_radar_grid = spec_width_ds.interp(
    time=ref_time,
    height=ref_height,
    method="nearest"
)

# MWR LWP is usually time-only, so only interpolate in time
mwr_lwp_on_radar_time = mwr_lwp_ds.interp(
    time=ref_time,
    method="nearest"
)

print("Radar shape:", radar_ds[radar_var].shape)
print("Ceilometer on radar grid shape:", ceil_on_radar_grid[ceil_var].shape)
print("Velocity on radar grid shape:", vel_on_radar_grid[vel_var].shape)
print("Spectrum width on radar grid shape:", spec_width_on_radar_grid[spec_width_var].shape)
print("MWR LWP on radar time shape:", mwr_lwp_on_radar_time[mwr_lwp_var].shape)
print("Label shape:", label_ds[label_var].shape)

# ============================================================
# Fix label height coordinate units
# ============================================================

label_on_radar_grid = label_ds[label_var].copy()

# Convert label height from km to m
label_on_radar_grid = label_on_radar_grid.assign_coords(
    height=label_on_radar_grid["height"] * 1000.0
)

# Match height dtype to radar height dtype
label_on_radar_grid = label_on_radar_grid.assign_coords(
    height=label_on_radar_grid["height"].astype(radar_ds[radar_var]["height"].dtype)
)

print(label_on_radar_grid)

# ============================================================
# Cell 5: Combine into one Dataset
# ============================================================

combined_ds = xr.Dataset()

combined_ds["reflectivity"] = radar_ds[radar_var]
combined_ds["backscatter"] = ceil_on_radar_grid[ceil_var]
combined_ds["cloud_phase_mplgr"] = label_on_radar_grid

combined_ds["velocity"] = vel_on_radar_grid[vel_var]
combined_ds["spectral_width"] = spec_width_on_radar_grid[spec_width_var]

# MWR LWP is time-only. Xarray will broadcast it across height
# when converting to a DataFrame.
combined_ds["liq"] = mwr_lwp_on_radar_time[mwr_lwp_var]

print(combined_ds)

# ============================================================
# Cell 6: Convert to machine-learning table
# ============================================================

df = combined_ds.to_dataframe().reset_index()

print("DataFrame shape:", df.shape)
df.head(40)

# ============================================================
# Cell 7: Add grouping variables
# ============================================================

df["time"] = pd.to_datetime(df["time"])

# Each time has many vertical levels, so use time as profile_id.
df["profile_id"] = df["time"].astype(str)
df["date_id"] = df["time"].dt.strftime("%Y%m%d")

print(df[["time", "height", "profile_id", "date_id"]].head())
print("Number of profiles:", df["profile_id"].nunique())

print(df["cloud_phase_mplgr"])

df_all = combined_ds.to_dataframe().reset_index()

print("Phase counts in df_all before dropna:")
print(df_all["cloud_phase_mplgr"].value_counts(dropna=False).sort_index())

print("\nRows with phase 3 before dropna:")
print((df_all["cloud_phase_mplgr"] == 3).sum())

# ============================================================
# Cell 8: Basic checks (Check shape, etc)...
# ============================================================

print("Dataset shape:", df_all.shape)

print("\nMissing values:")
print(df_all.isna().sum())

print("\nPhase label counts:")
print(df_all["cloud_phase_mplgr"].value_counts(dropna=False))

print("\nReflectivity summary:")
print(df_all["reflectivity"].describe())

print("\nBackscatter summary:")
print(df_all["backscatter"].describe())

# ============================================================
# Cell 9: Define features and clean dataset
# ============================================================

label_col = "cloud_phase_mplgr"

feature_cols = [
    "reflectivity",
    "backscatter",
    "velocity",
    "spectral_width",
    "liq",
    "height",
]

model_df = df_all.copy()

# Remove missing labels and missing features
model_df = model_df.dropna(subset=[label_col]).copy()
model_df = model_df.dropna(subset=feature_cols).copy()

# Convert labels to integers
model_df[label_col] = model_df[label_col].astype(int)

print("Model dataset shape:", model_df.shape)

print("\nPhase counts after cleaning:")
print(model_df[label_col].value_counts().sort_index())

print("\nMissing values after cleaning:")
print(model_df[feature_cols + [label_col]].isna().sum())

print("\nFeature columns:")
print(feature_cols)

print("\nUnique phase labels:")
print(np.sort(model_df[label_col].unique()))

# ============================================================
# Cell 10: Grouped train/test split
# ============================================================

# Make sure profile_id exists.
# Each unique time is treated as one vertical profile.
if "profile_id" not in model_df.columns:
    model_df = model_df.copy()
    model_df["profile_id"] = model_df["time"].astype(str)

X = model_df[feature_cols]
y = model_df[label_col]

# Since each time has many vertical levels, split by profile_id,
# not by random individual time-height rows.
groups = model_df["profile_id"]

splitter = GroupShuffleSplit(
    n_splits=1,
    test_size=0.20,
    random_state=RANDOM_STATE
)

train_idx, test_idx = next(splitter.split(X, y, groups=groups))

train_df = model_df.iloc[train_idx].copy()
test_df = model_df.iloc[test_idx].copy()

X_train = train_df[feature_cols]
y_train = train_df[label_col]

X_test = test_df[feature_cols]
y_test = test_df[label_col]

print(f"Training samples: {len(train_df)}")
print(f"Testing samples: {len(test_df)}")

print("\nNumber of unique training profiles:")
print(train_df["profile_id"].nunique())

print("\nNumber of unique testing profiles:")
print(test_df["profile_id"].nunique())

print("\nTraining phase counts:")
print(y_train.value_counts().sort_index())

print("\nTesting phase counts:")
print(y_test.value_counts().sort_index())

# ============================================================
# Cell 11: Train Random Forest
# ============================================================

rf = RandomForestClassifier(
    n_estimators=500,
    max_depth=None,
    min_samples_leaf=10,
    max_features="sqrt",
    class_weight="balanced",
    random_state=RANDOM_STATE,
    n_jobs=-1,
)

rf.fit(X_train, y_train)

print("Random Forest training complete.")

# ============================================================
# Cell 12: Evaluate model
# ============================================================

y_pred = rf.predict(X_test)
y_prob = rf.predict_proba(X_test)

class_names = list(rf.classes_)

print("Class names:")
print(class_names)

print("\nClassification report:")
print(classification_report(y_test, y_pred))

# Summary metrics

metrics = {
    "accuracy": accuracy_score(y_test, y_pred),
    "balanced_accuracy": balanced_accuracy_score(y_test, y_pred),
    "macro_precision": precision_score(y_test, y_pred, average="macro", zero_division=0),
    "macro_recall": recall_score(y_test, y_pred, average="macro", zero_division=0),
    "macro_f1": f1_score(y_test, y_pred, average="macro", zero_division=0),
    "weighted_precision": precision_score(y_test, y_pred, average="weighted", zero_division=0),
    "weighted_recall": recall_score(y_test, y_pred, average="weighted", zero_division=0),
    "weighted_f1": f1_score(y_test, y_pred, average="weighted", zero_division=0),
}

metrics_df = pd.DataFrame([metrics])
metrics_df

# ============================================================
# Cell 13: Save model and predictions
# ============================================================

test_pred_df = test_df.copy()
test_pred_df["phase_pred"] = y_pred

for i, class_name in enumerate(class_names):
    test_pred_df[f"prob_{class_name}"] = y_prob[:, i]

model_package = {
    "model": rf,
    "feature_cols": feature_cols,
    "class_names": class_names,
}

joblib.dump(model_package, OUT_DIR / "random_forest_cloud_phase_highres.joblib")

test_pred_df.to_csv(OUT_DIR / "random_forest_predictions.csv", index=False)
metrics_df.to_csv(OUT_DIR / "random_forest_metrics.csv", index=False)

print(f"Saved outputs to: {OUT_DIR}")

# ============================================================

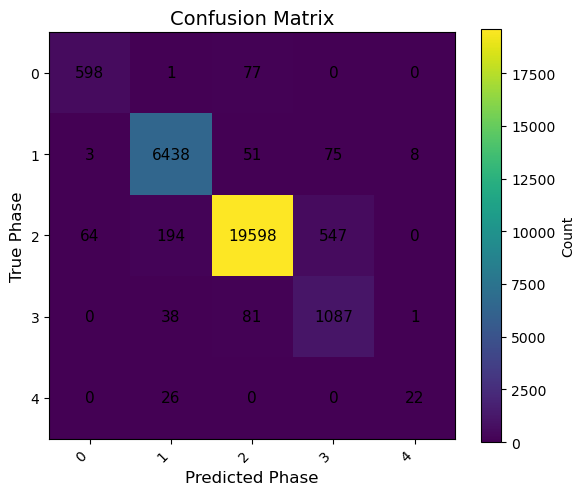

# Cell 14: Confusion matrix
# ============================================================

cm = confusion_matrix(y_test, y_pred, labels=class_names)

fig, ax = plt.subplots(figsize=(6, 5))

im = ax.imshow(cm)

ax.set_title("Confusion Matrix", fontsize=14)
ax.set_xlabel("Predicted Phase", fontsize=12)
ax.set_ylabel("True Phase", fontsize=12)

ax.set_xticks(np.arange(len(class_names)))
ax.set_yticks(np.arange(len(class_names)))

ax.set_xticklabels(class_names, rotation=45, ha="right")
ax.set_yticklabels(class_names)

cbar = fig.colorbar(im, ax=ax)
cbar.set_label("Count")

for i in range(len(class_names)):
    for j in range(len(class_names)):
        ax.text(
            j,
            i,
            f"{cm[i, j]}",
            ha="center",
            va="center",
            fontsize=11
        )

fig.tight_layout()
fig.savefig("confusion_matrix_counts.png", dpi=300, bbox_inches="tight")
plt.show()

# ============================================================

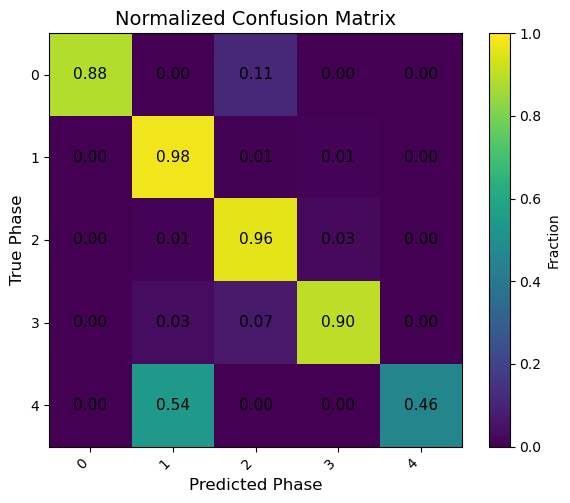

# Cell 15: Normalized confusion matrix
# ============================================================

cm_norm = cm.astype(float) / cm.sum(axis=1, keepdims=True)

fig, ax = plt.subplots(figsize=(6, 5))

im = ax.imshow(cm_norm, vmin=0, vmax=1)

ax.set_title("Normalized Confusion Matrix", fontsize=14)
ax.set_xlabel("Predicted Phase", fontsize=12)
ax.set_ylabel("True Phase", fontsize=12)

ax.set_xticks(np.arange(len(class_names)))
ax.set_yticks(np.arange(len(class_names)))

ax.set_xticklabels(class_names, rotation=45, ha="right")
ax.set_yticklabels(class_names)

cbar = fig.colorbar(im, ax=ax)
cbar.set_label("Fraction")

for i in range(len(class_names)):
    for j in range(len(class_names)):
        ax.text(
            j,
            i,
            f"{cm_norm[i, j]:.2f}",
            ha="center",
            va="center",
            fontsize=11
        )

fig.tight_layout()
fig.savefig("confusion_matrix_normalized.png", dpi=300, bbox_inches="tight")
plt.show()

#Convert time-height grid to a machine-learning table
df = combined_ds.to_dataframe().reset_index()

print(df.shape)
df.head()

# Add profile/group ID
df["time"] = pd.to_datetime(df["time"])

# Each vertical profile gets one group ID
df["profile_id"] = df["time"].astype(str)

print(df[["time", "height", "profile_id"]].head())
print("Number of profiles:", df["profile_id"].nunique())

# What if multiple dates?
df["date_id"] = df["time"].dt.strftime("%Y%m%d")

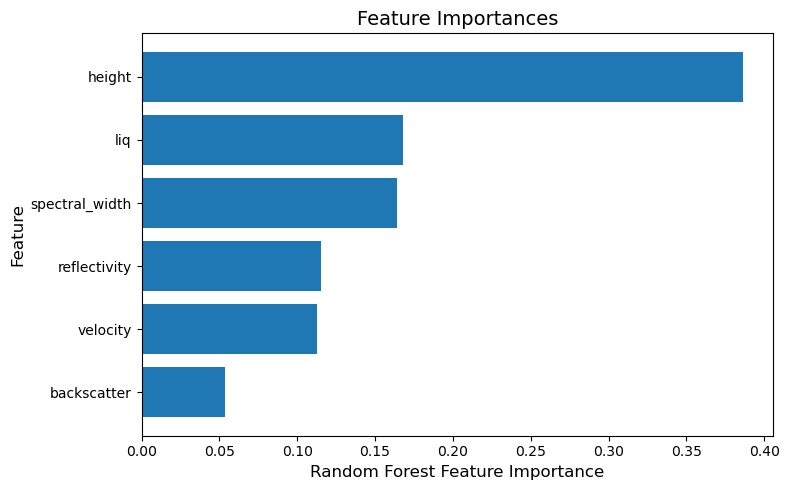

# Feature Importances
fi_df = pd.DataFrame({
    "feature": feature_cols,
    "importance": rf.feature_importances_
}).sort_values("importance", ascending=False)

plot_df = fi_df.sort_values("importance", ascending=True)

fig, ax = plt.subplots(figsize=(8, 5))

ax.barh(plot_df["feature"], plot_df["importance"])

ax.set_xlabel("Random Forest Feature Importance", fontsize=12)
ax.set_ylabel("Feature", fontsize=12)
ax.set_title("Feature Importances", fontsize=14)

fig.tight_layout()
fig.savefig("feature_importances.png", dpi=300, bbox_inches="tight")
plt.show()

# ============================================================
# Cell: Phase curtain comparison
# ============================================================

from matplotlib.colors import ListedColormap, BoundaryNorm

# Make a copy of the test prediction DataFrame
plot_df = test_pred_df.copy()

# Make sure time is datetime
plot_df["time"] = pd.to_datetime(plot_df["time"])

# Observed and predicted phase columns
true_phase_col = "cloud_phase_mplgr"
pred_phase_col = "phase_pred"

# Make sure phase values are integers
plot_df[true_phase_col] = plot_df[true_phase_col].astype(int)
plot_df[pred_phase_col] = plot_df[pred_phase_col].astype(int)

# Define class names based on MPLGR cloud phase values
phase_label_names = {
    0: "Clear",
    1: "Liquid",
    2: "Mixed",
    3: "Ice",
    4: "Unknown"
}

class_values = sorted(phase_label_names.keys())
class_names = [phase_label_names[i] for i in class_values]

# Set fixed colors for each class
phase_colors = [
    "red",         # 0 Clear
    "dodgerblue",    # 1 Liquid
    "mediumorchid",  # 2 Mixed
    "lightgray",     # 3 Ice
    "black"          # 4 Unknown
]

# Discrete colormap and normalization
cmap = ListedColormap(phase_colors)
bounds = np.arange(-0.5, len(class_values) + 0.5, 1)
norm = BoundaryNorm(bounds, cmap.N)

# Create observed phase grid
true_grid = plot_df.pivot_table(
    index="height",
    columns="time",
    values=true_phase_col,
    aggfunc="first"
)

# Create predicted phase grid
pred_grid = plot_df.pivot_table(
    index="height",
    columns="time",
    values=pred_phase_col,
    aggfunc="first"
)

# Sort height and time for clean plotting
true_grid = true_grid.sort_index().sort_index(axis=1)
pred_grid = pred_grid.sort_index().sort_index(axis=1)

# ============================================================

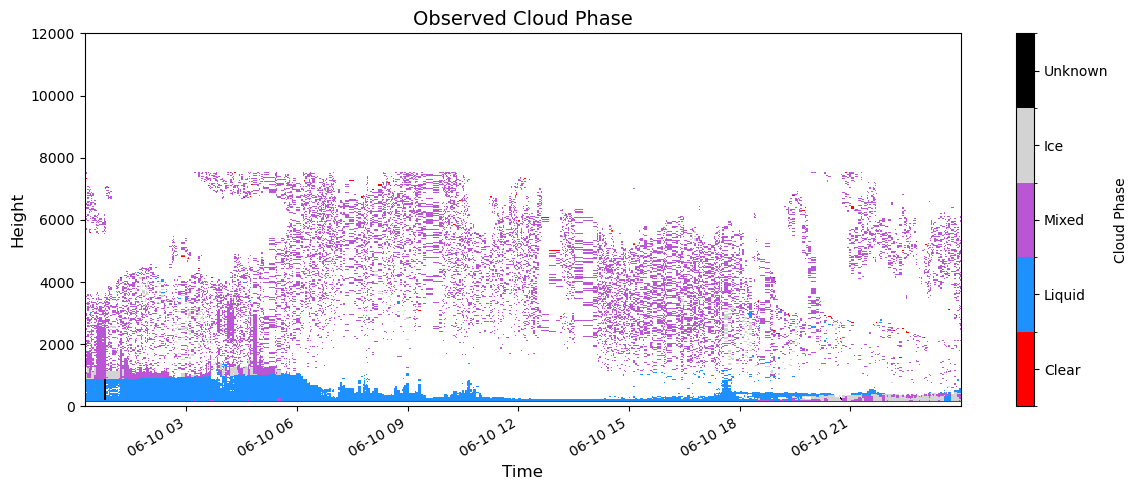

# Plot observed cloud phase
# ============================================================

fig, ax = plt.subplots(figsize=(12, 5))

im = ax.pcolormesh(
    true_grid.columns,
    true_grid.index.values,
    true_grid.values,
    shading="auto",
    cmap=cmap,
    norm=norm
)

cbar = fig.colorbar(
    im,
    ax=ax,
    ticks=class_values,
    boundaries=bounds,
    spacing="uniform"
)
cbar.ax.set_yticklabels(class_names)
cbar.set_label("Cloud Phase")

ax.set_title("Observed Cloud Phase", fontsize=14)
ax.set_xlabel("Time", fontsize=12)
ax.set_ylabel("Height", fontsize=12)
ax.set_ylim(0, 12000)

fig.autofmt_xdate()
fig.tight_layout()
fig.savefig(FIG_DIR / "phase_curtain_true.png", dpi=300, bbox_inches="tight")
plt.show()

# ============================================================

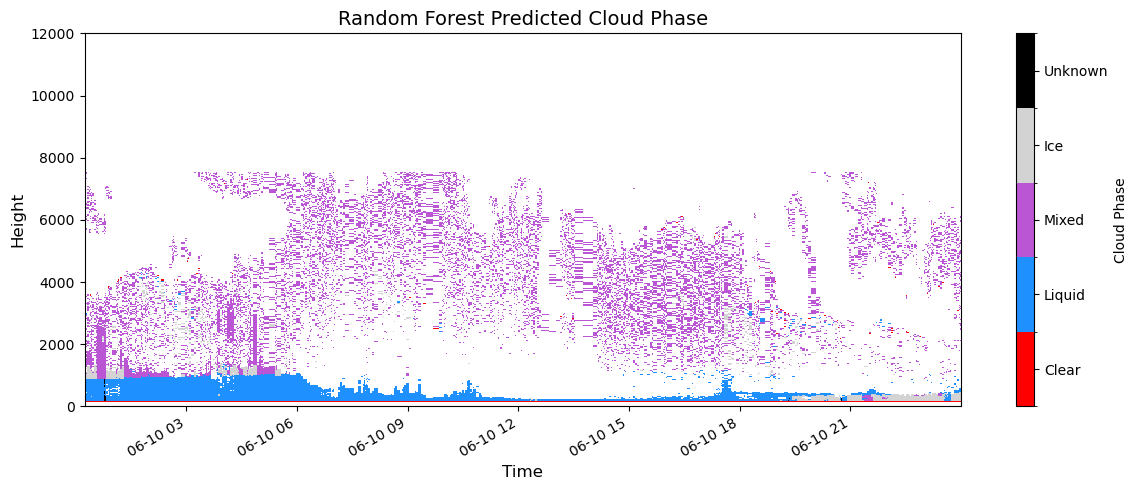

# Plot predicted cloud phase
# ============================================================

fig, ax = plt.subplots(figsize=(12, 5))

im = ax.pcolormesh(
    pred_grid.columns,
    pred_grid.index.values,
    pred_grid.values,
    shading="auto",
    cmap=cmap,
    norm=norm
)

cbar = fig.colorbar(
    im,
    ax=ax,
    ticks=class_values,
    boundaries=bounds,
    spacing="uniform"
)
cbar.ax.set_yticklabels(class_names)
cbar.set_label("Cloud Phase")

ax.set_title("Random Forest Predicted Cloud Phase", fontsize=14)
ax.set_xlabel("Time", fontsize=12)
ax.set_ylabel("Height", fontsize=12)
ax.set_ylim(0, 12000)

fig.autofmt_xdate()
fig.tight_layout()
fig.savefig("phase_curtain_predicted.png", dpi=300, bbox_inches="tight")
plt.show()

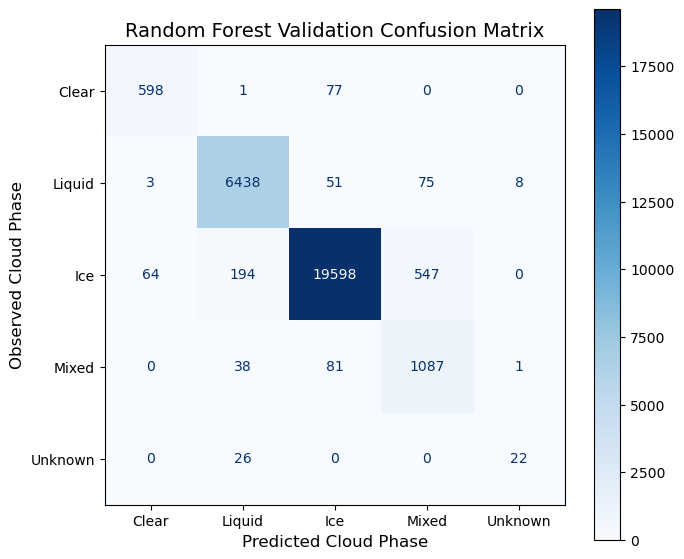

# Confusion Matrix for the Validation Dataset

from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay, classification_report

# Predict validation/test labels
y_val_pred = rf.predict(X_test)

# Define phase names
phase_label_names = {
    0: "Clear",
    1: "Liquid",
    2: "Ice",
    3: "Mixed",
    4: "Unknown"
}

class_values = sorted(phase_label_names.keys())
class_names = [phase_label_names[i] for i in class_values]

# Compute confusion matrix
cm = confusion_matrix(
    y_test,
    y_val_pred,
    labels=class_values
)

# Print classification report
print("Validation classification report:")
print(
    classification_report(
        y_test,
        y_val_pred,
        labels=class_values,
        target_names=class_names,
        zero_division=0
    )
)

# Plot confusion matrix
fig, ax = plt.subplots(figsize=(7, 6))

disp = ConfusionMatrixDisplay(
    confusion_matrix=cm,
    display_labels=class_names
)

disp.plot(
    ax=ax,
    cmap="Blues",
    colorbar=True,
    values_format="d"
)

ax.set_title("Random Forest Validation Confusion Matrix", fontsize=14)
ax.set_xlabel("Predicted Cloud Phase", fontsize=12)
ax.set_ylabel("Observed Cloud Phase", fontsize=12)

plt.xticks(rotation=0)
plt.yticks(rotation=0)

fig.tight_layout()
fig.savefig("validation_confusion_matrix_highres.png", dpi=300, bbox_inches="tight")
plt.show()

# ============================================================

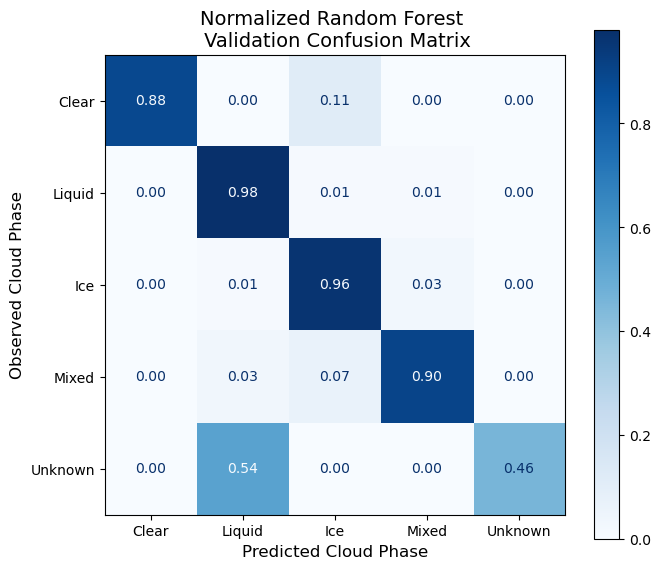

# Cell: Normalized validation confusion matrix
# ============================================================

from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay, classification_report

# Predict validation/test labels
y_val_pred = rf.predict(X_test)

# Define phase names
phase_label_names = {
    0: "Clear",
    1: "Liquid",
    2: "Ice",
    3: "Mixed",
    4: "Unknown"
}

class_values = sorted(phase_label_names.keys())
class_names = [phase_label_names[i] for i in class_values]

# Compute normalized confusion matrix
# normalize="true" normalizes each row by the observed class count
cm_norm = confusion_matrix(
    y_test,
    y_val_pred,
    labels=class_values,
    normalize="true"
)

# Plot normalized confusion matrix
fig, ax = plt.subplots(figsize=(7, 6))

disp = ConfusionMatrixDisplay(
    confusion_matrix=cm_norm,
    display_labels=class_names
)

disp.plot(
    ax=ax,
    cmap="Blues",
    colorbar=True,
    values_format=".2f"
)

ax.set_title("Normalized Random Forest \n Validation Confusion Matrix", fontsize=14)
ax.set_xlabel("Predicted Cloud Phase", fontsize=12)
ax.set_ylabel("Observed Cloud Phase", fontsize=12)

plt.xticks(rotation=0)
plt.yticks(rotation=0)

fig.tight_layout()
fig.savefig("validation_confusion_matrix_highres_normalized.png", dpi=300, bbox_inches="tight")
plt.show()
