ARM Live Investigation and Data Download

ARM Logo

ARM Live Investigation and Data Download

import os
from pathlib import Path
import glob
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
from matplotlib.colors import Normalize
import getpass

# Workarounds for OpenMP + Matplotlib in non-interactive runs
os.environ.setdefault("KMP_DUPLICATE_LIB_OK", "TRUE")
os.environ.setdefault("OMP_NUM_THREADS", "1")
os.environ.setdefault("MPLCONFIGDIR", str(Path("/tmp/matplotlib")))
Path(os.environ["MPLCONFIGDIR"]).mkdir(parents=True, exist_ok=True)

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import mean_absolute_error, mean_squared_error, r2_score

import act

print("✓ All packages imported successfully")
✓ All packages imported successfully
# Note - recommended ARM Live token to be set as an environmental variable

# Check for env variables, otherwise set your username and token here!
if "ARM_USERNAME" in os.environ:
    arm_username = os.getenv("ARM_USERNAME")
else:
    arm_username = input("Enter ARM username: ").strip()
if "ARM_TOKEN" in os.environ:
    arm_token = os.getenv("ARM_TOKEN")
else:
    arm_token = getpass.getpass("Enter ARM token (hidden): ").strip()

# Set the datastream and start/enddates
los_datastream = 'sgpmwrlosC1.b1'
mfrs_datastream = 'sgpmfrsr7nchC1.b1'

startdate = '2025-01-01'
enddate = '2026-01-01'

# Use ACT to easily download the data.  Watch for the data citation!  Show some support
# for ARM's instrument experts and cite their data if you use it in a publication
result_los_met = act.discovery.download_arm_data(arm_username, arm_token, los_datastream, startdate, enddate)
result_mfrs_met = act.discovery.download_arm_data(arm_username, arm_token, mfrs_datastream, startdate, enddate)
Enter ARM username:  jcorner
Enter ARM token (hidden):  ········
Fetching long content....
#load the datafiles into a single nc file.
ds_los = act.io.read_arm_netcdf(result_los_met)
ds_mfrs = act.io.read_arm_netcdf(result_mfrs_met)

ds_mfrs
Loading...
ds_los.to_netcdf('radiometer.nc')
ds_mfrs.to_netcdf('mfrs.nc')

KeyboardInterrupt

ds_mfrs
Loading...
ds_mfrs[['direct_normal_narrowband_filter6', 'qc_direct_normal_narrowband_filter6']].to_netcdf('mfrs.nc')
qc_vap_idx = np.where(ds_los['qc_vap'].values == 0)
qc_direct_idx =

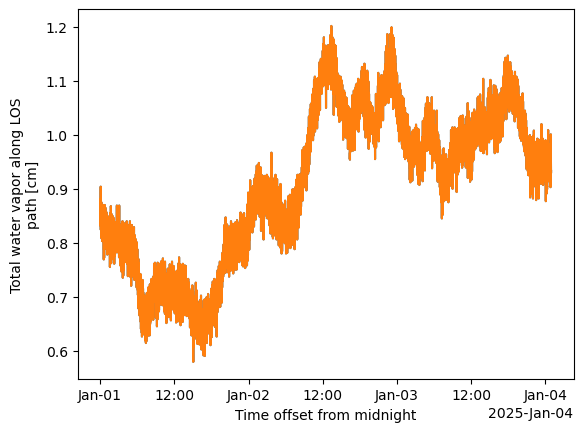

<Figure size 640x480 with 1 Axes>
idx = np.where(ds_cf_met['qc_vap'].values == 0)
ds_cf_met['vap'][:10000].plot()
ds_cf_met['vap'][idx][:10000].plot()

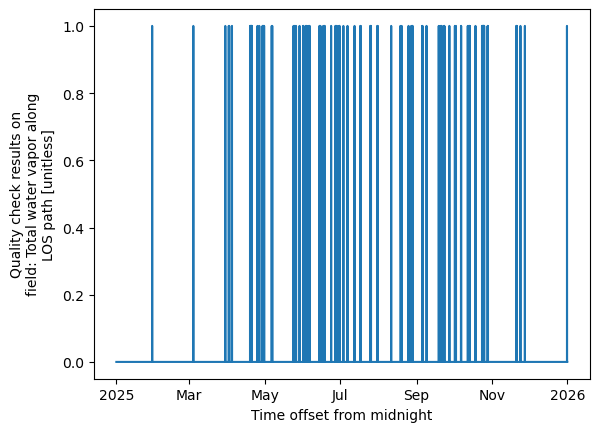

<Figure size 640x480 with 1 Axes>
ds_cf_met['direct_normal_narrowband_filter6'].values.shape
(1573879,)
