from pathlib import Path
import matplotlib as mpl
import matplotlib.dates as mdates
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import xarray as xr
from matplotlib.colors import LogNorm
plt.rcParams.update({
'font.family': 'Arial', 'font.size': 16,
'axes.labelsize': 16, 'axes.titlesize': 18,
'xtick.labelsize': 16, 'ytick.labelsize': 16,
'axes.linewidth': 1.5
})
_raw = [
(37, 70, 159), (58, 90, 170), (78, 111, 183), (104, 144, 199),
(131, 175, 212), (158, 207, 227), (187, 224, 234), (218, 240, 246),
(254, 240, 202), (254, 223, 146), (252, 197, 122), (251, 169, 94),
(245, 134, 78), (237, 98, 58), (221, 78, 46), (210, 58, 46),
]
CUSTOM_CMAP = mpl.colors.LinearSegmentedColormap.from_list(
"custom16", [(r / 255, g / 255, b / 255) for r, g, b in _raw], N=256
)
def plot_smps_local_day(
data_dir: Path,
local_date: str,
utc_offset_hours: int = -6,
pattern: str = "sgpaossmpsE13.b1.*.nc",
dp_min: float = 10.7,
dp_max: float = 532.8,
vmin: float = 100,
vmax: float = 100000,
use_lognorm: bool = True,
mark_fraction: float | None = None,
) -> None:
local_start = pd.Timestamp(local_date)
local_end = local_start + pd.Timedelta(days=1)
times = []
spectra = []
geometric_diameters = []
diameter = None
for nc_path in sorted(data_dir.glob(pattern)):
with xr.open_dataset(nc_path, engine="scipy") as ds:
local_time = pd.to_datetime(ds["time"].values) + pd.Timedelta(hours=utc_offset_hours)
keep = (local_time >= local_start) & (local_time < local_end)
if not keep.any():
continue
spec_var = ds["dN_dlogDp"]
missing = spec_var.attrs.get("missing_value", -9999.0)
spec = np.asarray(spec_var.values, dtype=float)[keep, :]
spec[spec == missing] = np.nan
diameter_values = np.asarray(ds["diameter_mobility"].values, dtype=float)
size_keep = (diameter_values >= dp_min) & (diameter_values < dp_max)
spec = spec[:, size_keep]
geometric_diameter = np.asarray(ds["geometric_mean"].values, dtype=float)[keep]
if diameter is None:
diameter = diameter_values[size_keep]
times.append(pd.DatetimeIndex(local_time[keep]))
spectra.append(spec)
geometric_diameters.append(geometric_diameter)
if not spectra or diameter is None:
raise ValueError(f"No SMPS data found for local date {local_date}")
plot_time = times[0].append(times[1:]) if len(times) > 1 else times[0]
plot_spec = np.vstack(spectra)
plot_geometric_diameter = np.concatenate(geometric_diameters)
order = np.argsort(plot_time.values)
plot_time = plot_time[order]
plot_spec = plot_spec[order, :]
plot_geometric_diameter = plot_geometric_diameter[order]
norm = LogNorm(vmin=vmin, vmax=vmax) if use_lognorm else mpl.colors.Normalize(vmin, vmax)
fig, ax = plt.subplots(figsize=(11, 3.5))
pcm = ax.pcolormesh(
mdates.date2num(plot_time),
diameter,
np.where(plot_spec.T > 0, plot_spec.T, np.nan),
cmap=CUSTOM_CMAP,
shading="nearest",
norm=norm,
)
finite_geometric = np.isfinite(plot_geometric_diameter)
ax.plot(
plot_time[finite_geometric],
plot_geometric_diameter[finite_geometric],
linestyle="None",
marker="o",
markersize=4,
markerfacecolor="white",
markeredgecolor="black",
markeredgewidth=0.8,
zorder=5,
)
if mark_fraction is not None:
threshold = np.nanquantile(plot_geometric_diameter[finite_geometric], mark_fraction)
mark = finite_geometric & (plot_geometric_diameter <= threshold)
ax.plot(
plot_time[mark],
plot_geometric_diameter[mark],
linestyle="None",
marker="o",
markersize=6,
markerfacecolor="none",
markeredgecolor="red",
markeredgewidth=1.2,
zorder=6,
)
ax.set_yscale("log")
ax.set_ylabel("Mobility diameter (nm)")
ax.set_xlabel("Local time (UTC-6)")
ax.xaxis.set_major_locator(mdates.HourLocator(byhour=range(0, 24, 3)))
ax.xaxis.set_major_formatter(mdates.DateFormatter("%H:%M"))
ax.xaxis.set_minor_locator(mdates.HourLocator(interval=1))
ax.tick_params(axis="x", which="minor", length=3)
cbar = fig.colorbar(pcm, ax=ax, pad=0.015, fraction=0.20)
cbar.set_label("dN/dlogD$_p$ (cm$^{-3}$)")

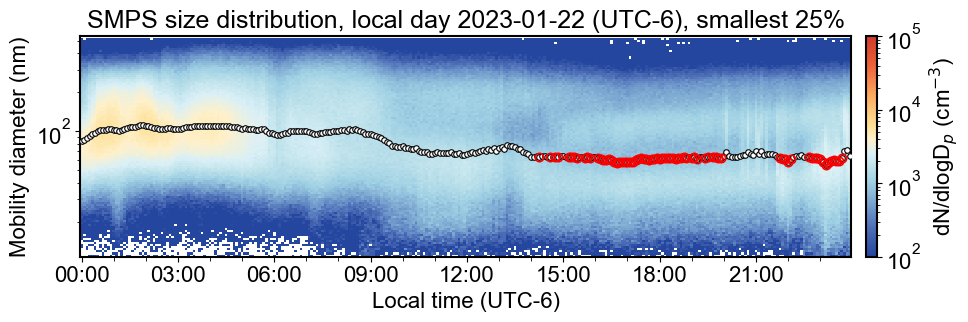

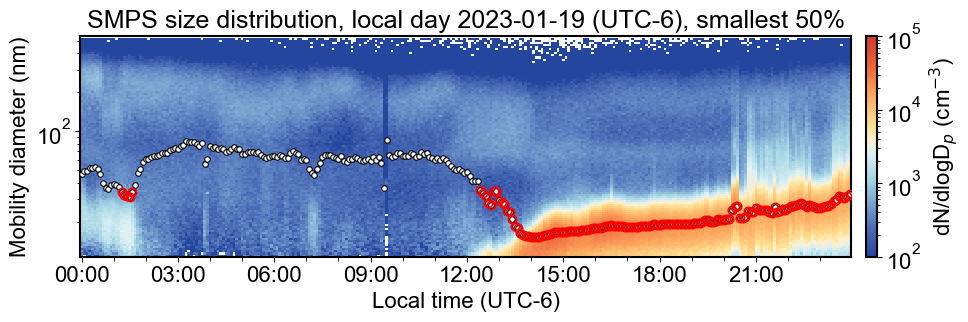

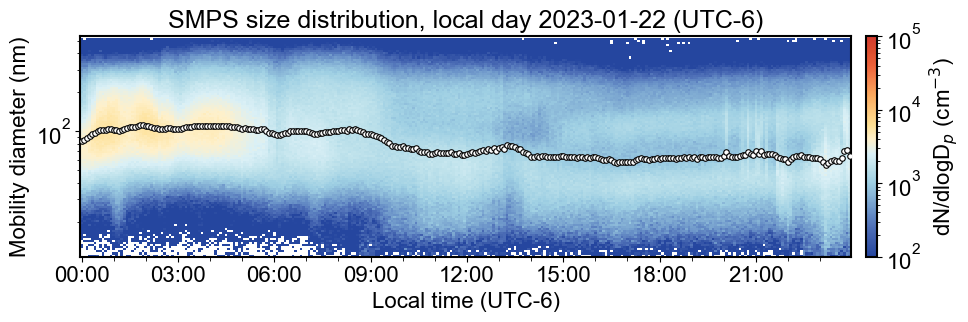

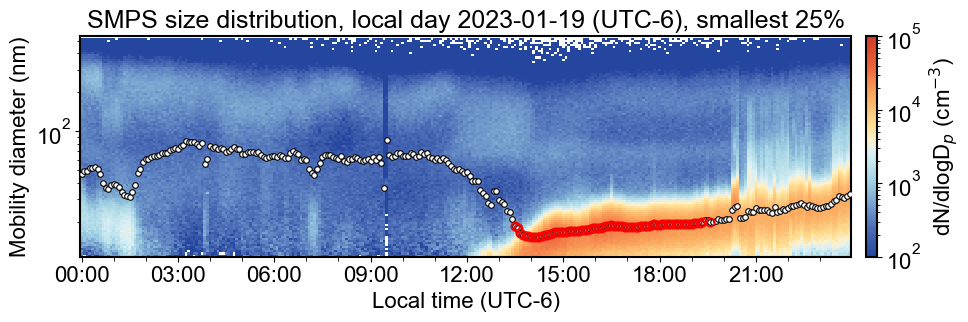

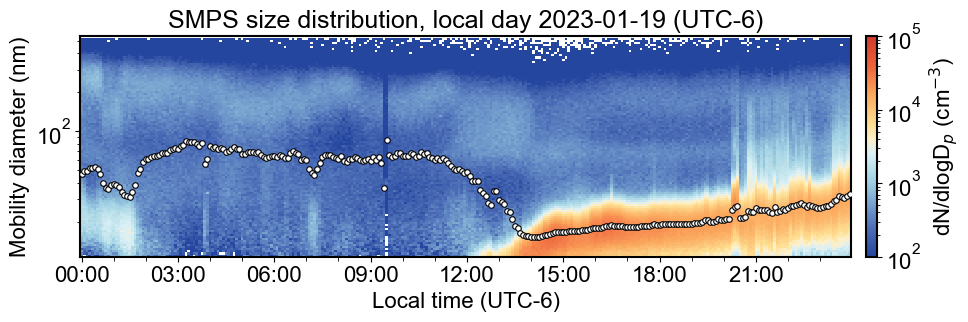

title = f"SMPS size distribution, local day {local_date} (UTC-6)"
if mark_fraction is not None:
title += f", smallest {int(mark_fraction * 100)}%"
ax.set_title(title)
plt.tight_layout()
plt.show()
plt.close(fig)
